SUNPLY®・SUMIPANEL®

Polypropylene plastic cardboard

A product that meets a wide range of issues such as reuse, recycling, weight reduction, high rigidity, water and chemical resistance, and long-term use.
Because of the product characteristics that polypropylene resin and hollow structure weave, we are active in various fields centering on packaging materials, construction materials and industrial materials.

Main features

◆Excellent in high rigidity and high impact

◆Excellent resistance to water, chemicals and hinges

◆Easy secondary processing (cutting, punching, bending)

◆Various special treatments such as dust resistance, easy printing, adhesion, weathering prescription, etc. are possible

◆Many grades from plate thickness 1.5mm to 15mm, abundant color variation

◆With manufacturing bases in 3 locations in Kanto, Chubu and Kyushu, efficient delivery and stable supply are possible

Application example

Industrial materialsCar interior parts, bed core, heat exchange elements, etc.
Packing / LogisticsReplacement of paper cardboard, product packing / partitioning for reuse, cushioning board for protection of products, substitution of veneer board, floor board for putting board and product, etc.

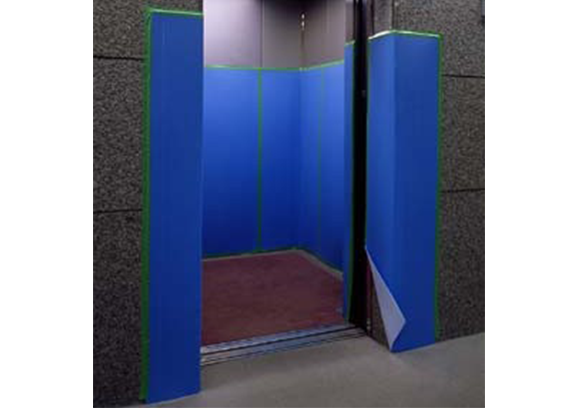

Construction / civil engineeringUnderfloor insulation holding plate of house, backboard of product display stand, wall curing plate at the time of building construction and moving, tatami mat core, etc.
Agriculture / FisheriesCases for seafood, sheets for hydroponic culture, sheet pallets, etc.


Main product specification

（Unit：mm） Thickness Maximum width
SUNPLY® 1.5 1350
2.51820
3
4
5
6
7
SUMIPANEL®Standard9 1300
12
15
High rigidity91300
12
151200


SFコンテナーと組仕切り
ベニヤ板の代替

Product lineup

■　Product catalog　■ （PDF）

SUNPLY®

  • HP（Standard）
  • HD（Conduction）
  • SF（Sustained antistatic）
  • SD（Multilayer conduction）
  • HK・HS（Heat border）
  • HF（Shock absorbing material bonding）
  • HG（Bio Eco）
  • DK（Electrostatic diffusion）

SUMIPANEL®

  • WN（Standard）
  • WT（High rigidity）

SUNPLY ®CLEAN（SF）

SUNPLY®CLEAN is a PP (polypropylene) plastic cardboard with no change in antistatic performance.
Antistatic performance hardly changes regardless of washing etc.（Holds 1010～1013Ω with surface resistivity）
* Other characteristics are the same as Samply®Standard (HP grade).(Printability, weatherability, etc.)

Main product specification

SF30050

SF50080

SF40070

SF50100

Thickness(mm)
3
Weight(g/㎡)500
Full width
(mm)		1820
Standard color

natural、white、

light blue、

light green、

gray、black

Thickness(mm)
5
Weight(g/㎡)800
Full width
(mm)		1820
Standard color

natural、white、

light blue、

light green、

gray、black

Thickness(mm)
4
Weight(g/㎡)700
Full width
(mm)		1820
Standard color

natural、white、

light blue、

light green、

gray、black

Thickness(mm)
5
Weight(g/㎡)1000
Full width
(mm)		1820
Standard color

natural、white、

light blue、

light green、

gray、black

Note：Same treatment (cut and sell) as SUNPLY®standard (HP grade).


SUNPLY ®NETSUKE（HK・HS）

SUNPLY®NETSUKE is a flexible type (lined) curing material.

In addition to being able to use it with a small diameter with 35 mm of ruled lines, it also has good cushioning because it traps air between the ruled lines. In addition, it can contribute to cost reduction with simple packaging.

HK15025

Thickness(mm)
1.5
Weight(g/㎡)250

Roll width(mm)

801～1310
Roll length
(mm)		50,000

Sheet width

(mm)

1,350

Sheet length

(mm)

2,400
Color
natural

HK30040

Thickness(mm)
3.0
Weight(g/㎡)400

Roll width(mm)

801～1310
Roll length
(mm)		25,000

Sheet width

(mm)

1,350

Sheet length

(mm)

2,400
Color
natural

HK40060

Thickness(mm)
4.0
Weight(g/㎡)600

Roll width(mm)

801～1310
Roll length
(mm)		25,000

Sheet width

(mm)

1,350

Sheet length

(mm)

2,400
Color
natural

HK50100

Thickness(mm)
5.0
Weight(g/㎡)1,000

Roll width(mm)

801～1310
Roll length
(mm)		15,000

Sheet width

(mm)

1,350

Sheet length

(mm)

2,400
Color
natural

HS15025

Thickness(mm)
1.5
Weight(g/㎡)250

Roll width(mm)

301～1310
Roll length
(mm)		50,000
Color
natural

HS30040

Thickness(mm)
3.0
Weight(g/㎡)400

Roll width(mm)

301～1310
Roll length
(mm)		25,000
Color
natural

HS40060

Thickness(mm)
4.0
Weight(g/㎡)600

Roll width(mm)

301～1310
Roll length
(mm)		25,000
Color
natural

HS50100

Thickness(mm)
Thickness(mm)
Weight(g/㎡)1,000

Roll width(mm)

301～1310
Roll length
(mm)		15,000
Color
natural


SUNPLY®Electrostatic diffusion（DK）

SUNPLY®Electrostatic diffusion is a product to protect electronic devices and parts from electrostatic discharge (ESD) by releasing static electricity generated by
friction slowly.
It is a plastic cardboard made of PP (polypropylene) in which the surface resistance value of the electrical characteristics is in the static electricity diffusion area
(between the conductive area and the antistatic area).
Charged area attenuation characteristics conform to MIL and EIA standards (electronic packaging material standards).

Main product specification

DK40060

Thickness(mm)
4
Weight(g/㎡)600
Full width(mm)1820
Original fabric size(mm)910×1820
Standard color
black

DK50090

Thickness(mm)
5
Weight(g/㎡)900
Full width(mm)1820
Original fabric size(mm)910×1820
1820×1820
Standard color
black
