SUMICELLER®

Foamed polypropylene sheet

SUMICEiLLER® is a polypropylene sheet with a foaming ratio of 1.3 to 3 times, consisting of a dense surface layer and small individual bubbles.

This sheet, developed by Sumika Plastics' proprietary technology, has many excellent features to meet the needs of various application fields.

Main features

◆Lightweight and highly rigid

◆Hygienic and excellent in chemical resistance

◆Smooth feel with uniform and small cell diameter

◆Excellent printability due to the smooth surface

◆Recyclability

Application example

Industrial materialsAluminum resin composite board, trunk mat, etc.
Packing / LogisticsPartitions, tote boxes, cushioning materials, etc.
Construction / civil engineeringSynthetic tatami mat, curing sheet, etc.


Main product specification

Nominal gradeFoaming ratio

Thickness

Weightwidth
1310 070
1.3 times
1 mm700 g/㎡1350 mm
3030 0903 times3 mm900 g/㎡1250 mm
3040 1203 times4 mm1200 g/㎡1250 mm
3050 1503 times5 mm1500 g/㎡1250 mm
◆Color : natural・light blue
Nominal gradeFoaming ratio

Thickness

Weightwidth
3030 090ST3 times3 mm900 g/㎡1250 mm
3040 120ST3 times4 mm1200 g/㎡1250 mm
3050 150ST
3 times5 mm1500 g/㎡1250 mm
◆Color : light blue・gray（only 3040ST）


Product lineup

  ■　Product catalog　■ （PDF）

  • Standard
  • Hard
  • WL（Wood-like）Click here for details
  • ST（Sustained antistatic）
  • KT（Antibacterial type） catalog（PDF)
  • YAWARA（Cushioning material bonding product）catalog（PDF)　


SUMICELLER®WL

We have developed SUMICELLER® WL (wood-like) grade, which has a wood-like design based on SUMICELLER.

It has buffering properties and good processability.As it has surface smoothness and excellent printability, it can be used in various ways by utilizing its design.

Application example

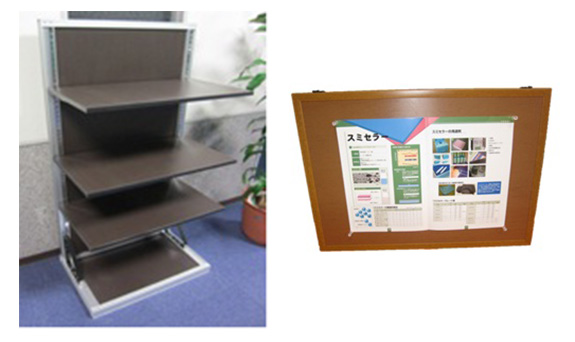

Industrial materialsSignboards, exhibition stands, etc.
建材Side plate of plywood box, partition, etc
DIYWood plate substitutes, art materials, etc.
スミセラー®WL


Main product specification

Nominal gradeFoaming ratio

Thickness

WeightwidthLength
3030 090WL3 times3 mm900 g/㎡1000 mm
2000 mm

◆Color : red-brown・black-brown・antique-white・green
 （note）5 sheets unit packing,Sales lot is more than 10 sheets.

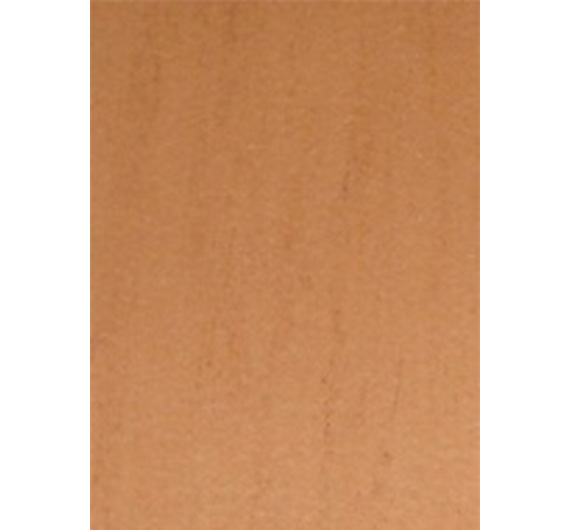

     red-brown

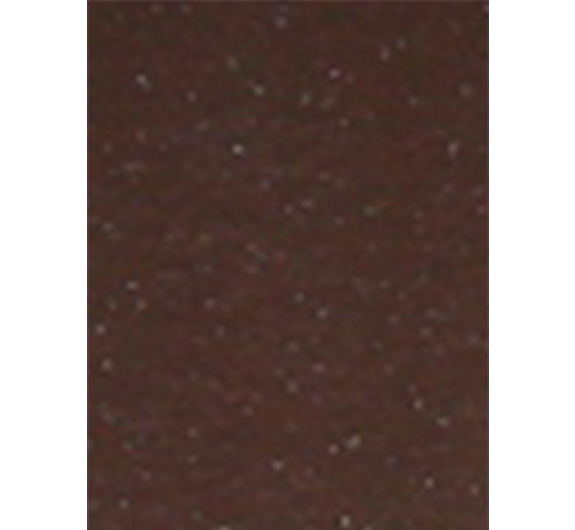

   black-brown

antique-white

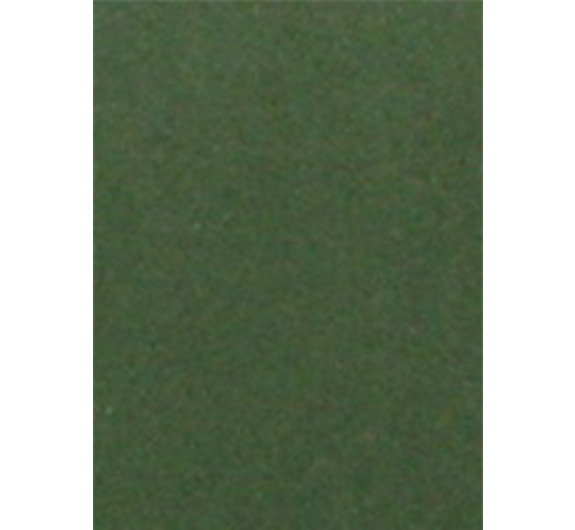

        green
